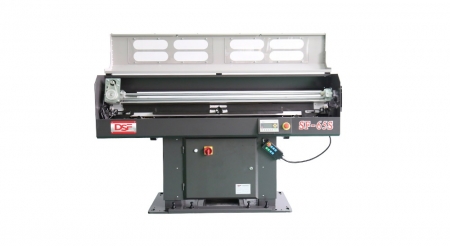

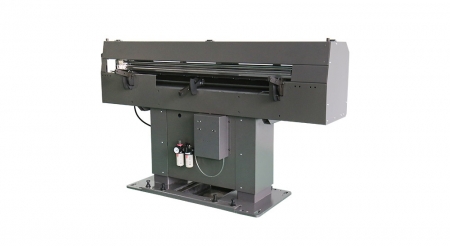

SF65S
SF65S
SF65S
SF65S
SF65S
SF65S
SF65S

SF65S

  • Details
  • Features


Technical specificationsSF 65S 1.5M
Bar diametet5mm-65mm
Bar length

Max.1510mm（Depends on the lathe spindle）

Spindle height853mm-1243mm
Weight386kg
MotorServo
Power supply220V1P（Can be adjusted according to the power supply of the lathe）
Bar capacityDepends on bar diameter
X-axis retraction(optional)300mm
Z-asix retraction(optional)600mm


  • Features

    ● With three different sizes (6mm, 12mm, 20mm) of press bars to cover all bar diameter ranges fed.

    ● Suitable for various styles of material such as round, square and hexagonal bars.

    ● A human-machine interface that automatically detects any abnormal movement and displays it on the hand control box.

    ● The residual material is short, which greatly reduces the material waste.

    ● Parameter setting is convenient without modifying any program.

    ● The replacement time is short.

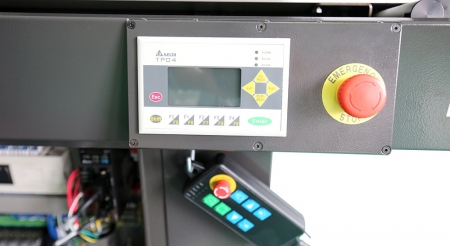

  • Humanized Handheld Controller
    The innovative mobile controller combines a human-machine interface to provide the most convenient operation. With simple parameter setting, the best operation can be achieved.    		Quick bar exchange

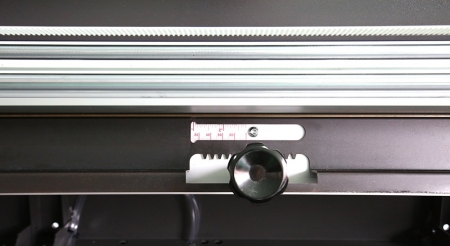

    The bar diameter can be exchanged quickly in about 1 minute. Suitable for hexagonal and square bars.    		Servo Drive
    Advanced servo drive technology provides unparalleled precise control of the bar, preventing the bar from colliding with the turret, known as "flexible" positioning control. Control accuracy up to 0.6mm!



    Quick Release Bars
    We offer three bar sizes for all bar diameter ranges. The pressing rod can be replaced quickly and easily by the quick release mechanism without any auxiliary tools.
